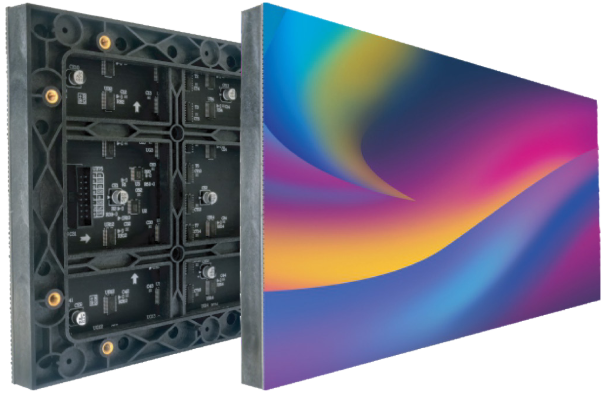

Product Module Led

AC2I-1515-SSC

PixeL Pitch

2.0mm

Pixel type

SMD1515 3 in1

Configuration

1R1G1B

IC Led

ICND2065/ FM6363 /SM16380

Size (Width*Height*Depth)

320*160*14.5mm

Resolution

160*80=12800Dots

Chip Led

Nationstar Lamp Copper Wire SMD1515

Structure

Lamp & IC in same PCB

Weight module led

0.37kg±0.01kg

Input Voltage (DC)

4.5±0.1V

Maximum Current

≤5A

Power Consumption

≤23W

Driving Method

Constant Current 1/40 Scan

40A Power Supply for

5-6 pcs module

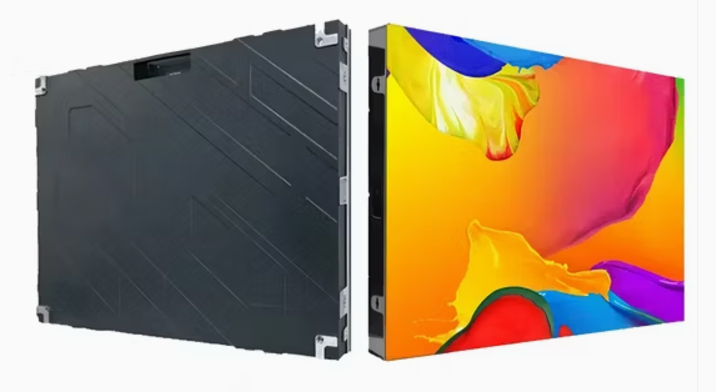

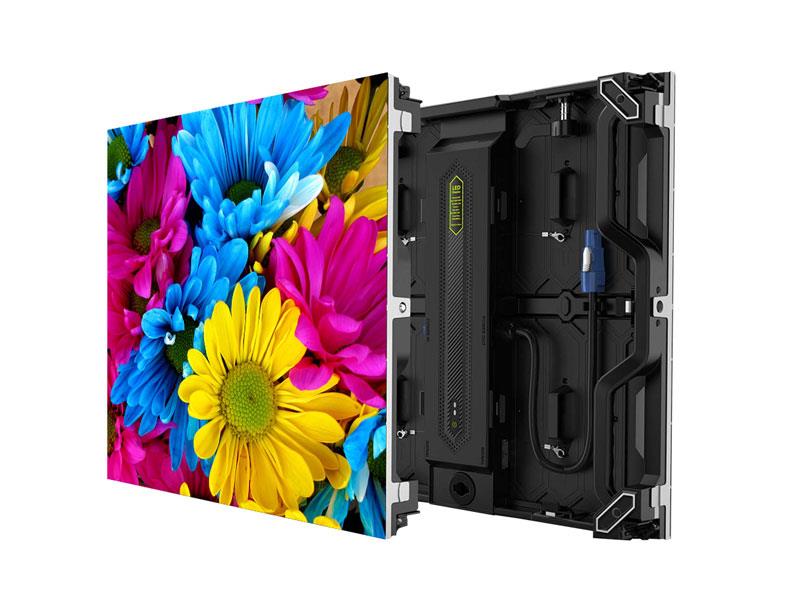

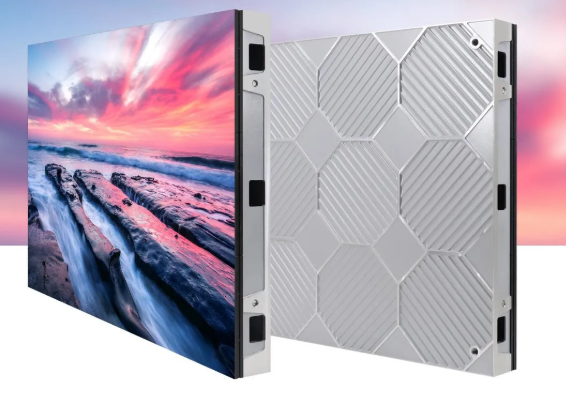

Cabinet Size (Width*Height*Thickness)

640mm*480mm*84.5mm (Thickness including module、 cabinet  and connecting piece)

Cabinet Pixel Density

320*240=76800 Dots

Pixel Density

250.000 Dots/㎡

Cabinet Area

0.307㎡

Cabinet Weight

7.39kg±0.05kg

Cabinet Max Power Consumption

≤129W

Average Power Consumption (1/3 Max)

≤43W

Distribution Power (Power Supply Capacity 78%)

≤170W

Screen Technical Specification

Brightness

≥ 650cd/㎡

Brightness Uniformity

＞0.95

Horizontal Viewing Angle

130 ±10 degree

Vertical Viewing Angle

130 ±10 degree

Best Viewing Distance

≥2m

Black Spot Ratio

< 0.0003； 0 when shipped from the factor

Max Power Consumption

≤435 W/㎡

Operation Environment

Indoor

Grayscale

14-16bits (RGB each)

Display Color

4398 Billion

Frame Frequency

≥60 frame/sec

Refresh Frequency

≥4200 Hz

Control Mode

Computer control, Point-to-point, Video synchronization, real- time display

Brightness Adjustment

256-grade automatic

Input signal

DVI/VGA/HDMI/DP, composite video signal, S-VIDEO, YpbPr(HDTV)

Lifespan

≥100,000 hours

Average Failure Free Time

≥10,000 hours

Working Temp /Humidity

-20°C~70°C /10%~90%

Storage Temp / Humidity

-40°C~80°C/10%~90%

Data transfer method

Cables RJ45 (Ethernet)

Control System

Synchronous / Asynchronous /Synchronize with computers: Windows XP, Vista, Win7, Win8, Win10, Win11,…

Serviceability

Rear / Front

Front water protection level

IP56
